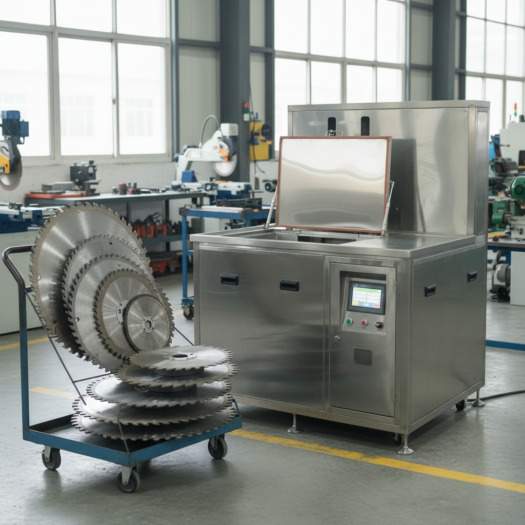

Industrial Ultrasonic Saw Blade Cleaning Tank – STSAWTANK-650

PLEASE ALLOW 18-20 WEEKS FOR DELIVERY

Unlike conventional ultrasonic cleaning tanks that rely solely on ultrasonic cavitation, the STSAWTANK-650 features a pneumatic lifting and oscillating basket system that continuously moves the saw blades during the cleaning cycle. This up-and-down and swinging motion exposes every surface to fresh cleaning solution, helping remove resin, pitch, oils, and debris faster and more thoroughly while reducing cleaning time.

Restore saw blades to like-new condition with the STSAWTANK-650 Industrial Ultrasonic Cleaning Tank. Designed for continuous industrial use, this heavy-duty ultrasonic cleaner removes resin, pitch, oils, and contaminants from saw blades and tooling quickly and efficiently. Built entirely from corrosion-resistant 316 stainless steel, it features adjustable ultrasonic power, independent heating, an integrated filtration and oil-skimming system, and a pneumatic lifting basket for easy loading and unloading.

Ideal for saw shops, filing rooms, sharpening centers, lumber mills and manufacturing facilities requiring reliable, high-volume cleaning.

Features

• Heavy-duty 316 stainless steel tank and housing
• 24/7 continuous-duty industrial design
• Adjustable ultrasonic power (0–5,760W)
• Independent 12,000W heating system (30–90°C)
• Integrated filtration system with:
• 20-micron stainless steel filter
• Adjustable flow centrifugal pump
• Oil skimmer for extended solution life
• Pneumatic lift system with 300 kg capacity
• 50 mm oscillating basket movement for improved cleaning
• PLC controls with LCD display
• Includes stainless steel basket with saw blade dividers
• Two immersible transducer plates (96 total transducers)
•

Specifications

• Tank Size: 650 × 500 × 820 mm
• Effective Liquid Capacity: 189 L
• Ultrasonic Frequency: 40 kHz
• Ultrasonic Power: 0–5,760 W
• Heating Power: 12,000 W
• Timer: 1–99 minutes
• Maximum Load: 300 kg
• Construction: SUS316 Stainless Steel
• Shipping: Standard wooden crate
•

Perfect for cleaning circular saw blades, router cutters, tooling, machine parts, and other industrial components while extending tool life and improving cutting performance.
